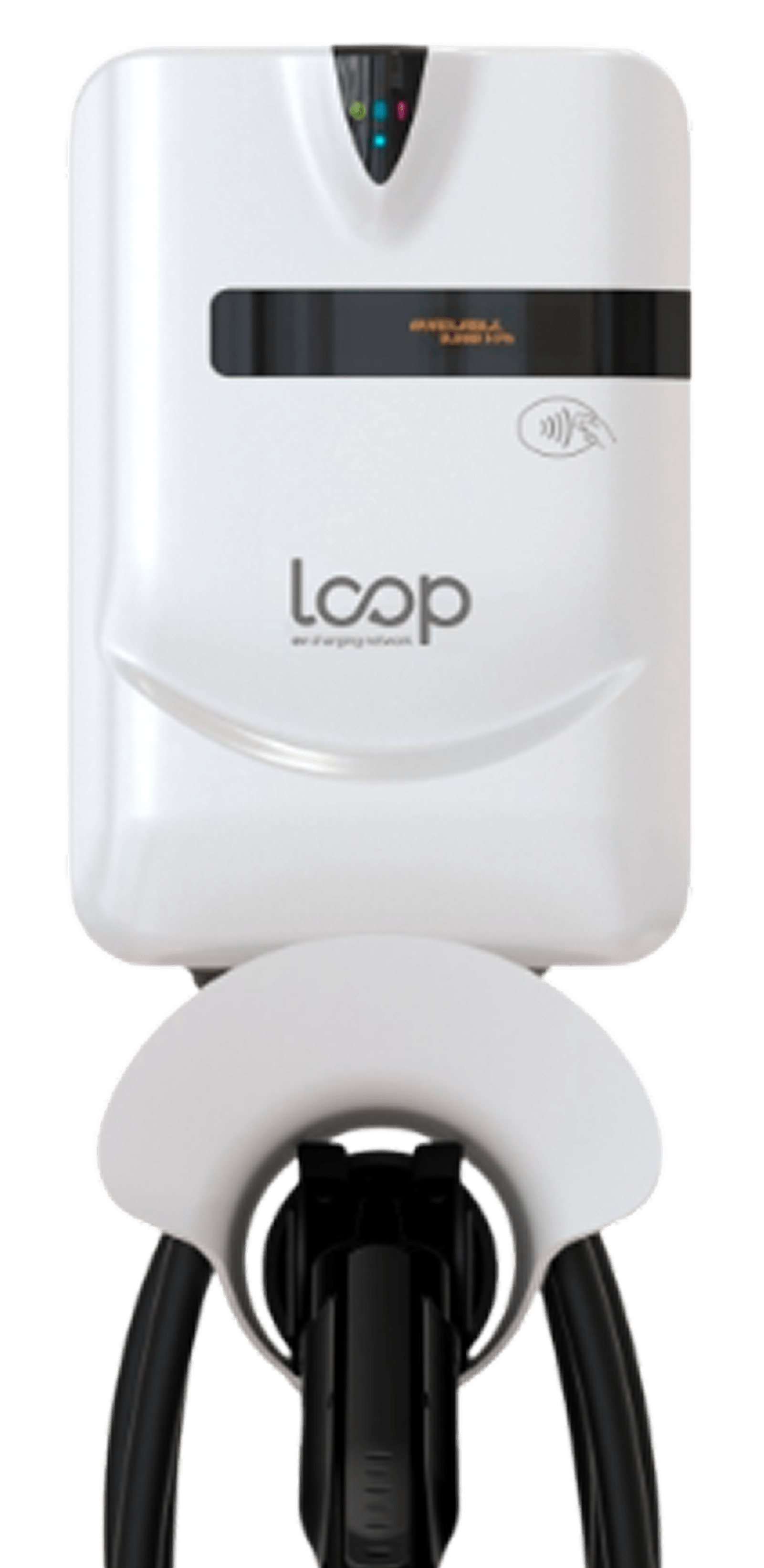

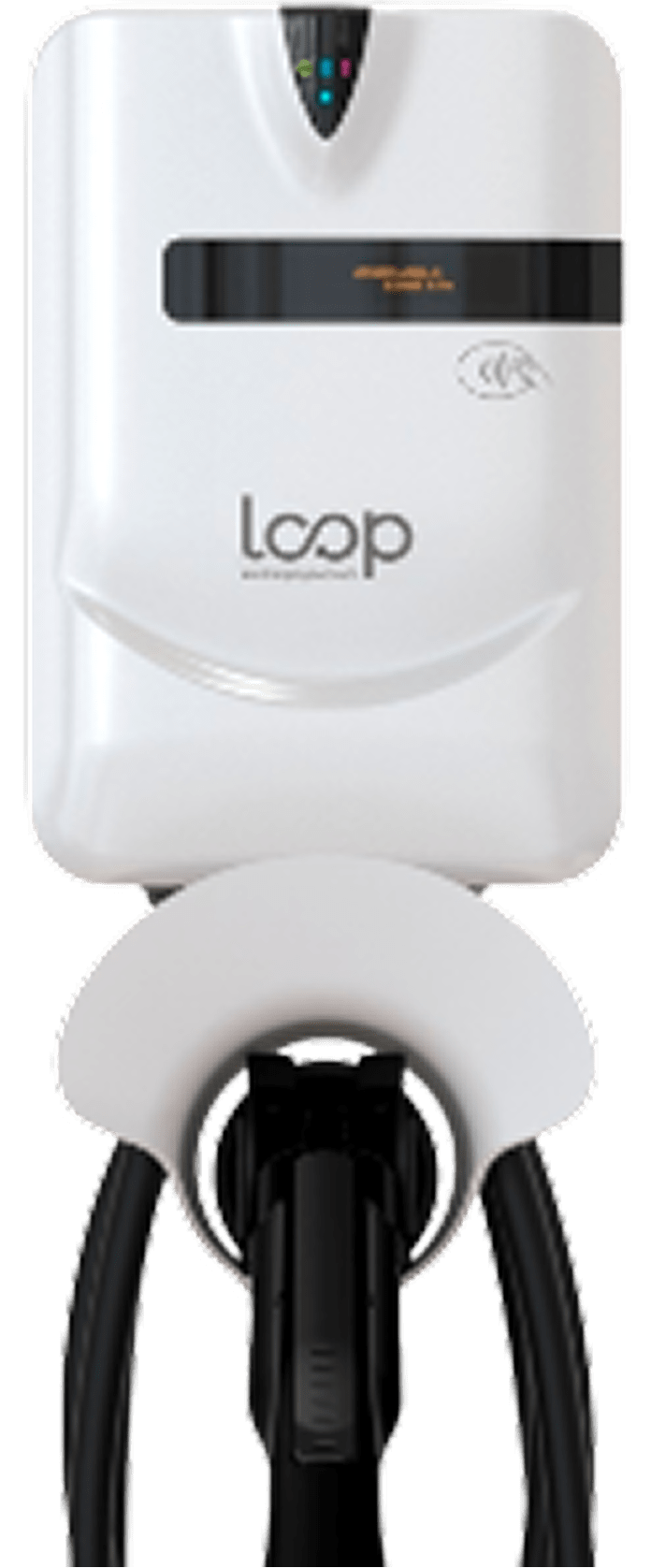

Electric Vehicle Level 2 Charging Station
Discover the best-in-class EV charging network technology — whether at home or on the go. Loop’s L2 charging stations offer the most flexible and ideal solution for multi-tenant residential, commercial, retail, and municipal properties.
Smart AC charging for wide adoption
Seamless & Reliable

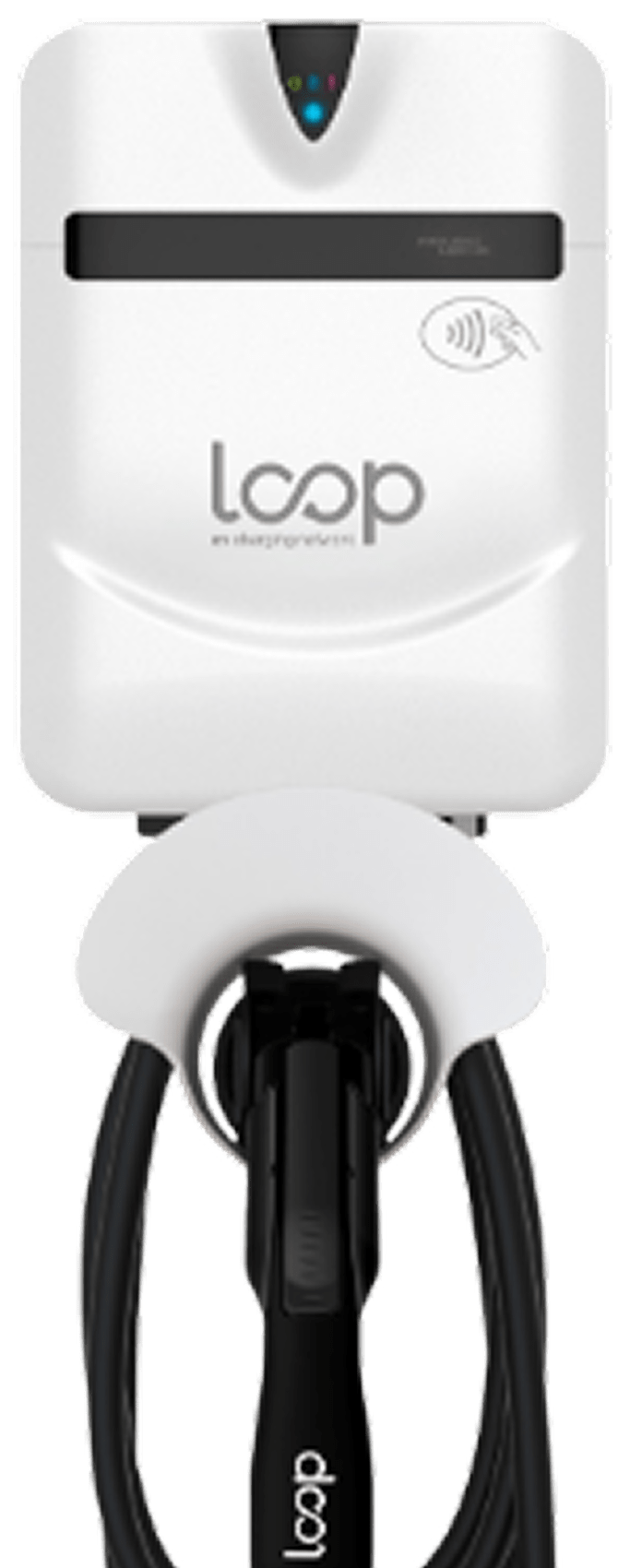

Featuring a sleek, compact design, this charger can be mounted on a wall, pole, or pedestal, and comes WiFi- and LTE-enabled for seamless use on public or private networks.
Ready to Deploy
UL certified for charging and energy management, Energy Star rated for efficiency, CTEP/NTEP approved for commercial transactions, and OCPP certified for seamless network integration delivering trusted performance on every level.
Easy to Operate
Light Commercial / Residential
EV-Flex Lite™
Commercial
EV-Flex / EV-Flex +™
32 amps or 40 amps max power
- 7.68 - 9.6 kW
-
Up to 29 - 35 miles
of range/hr

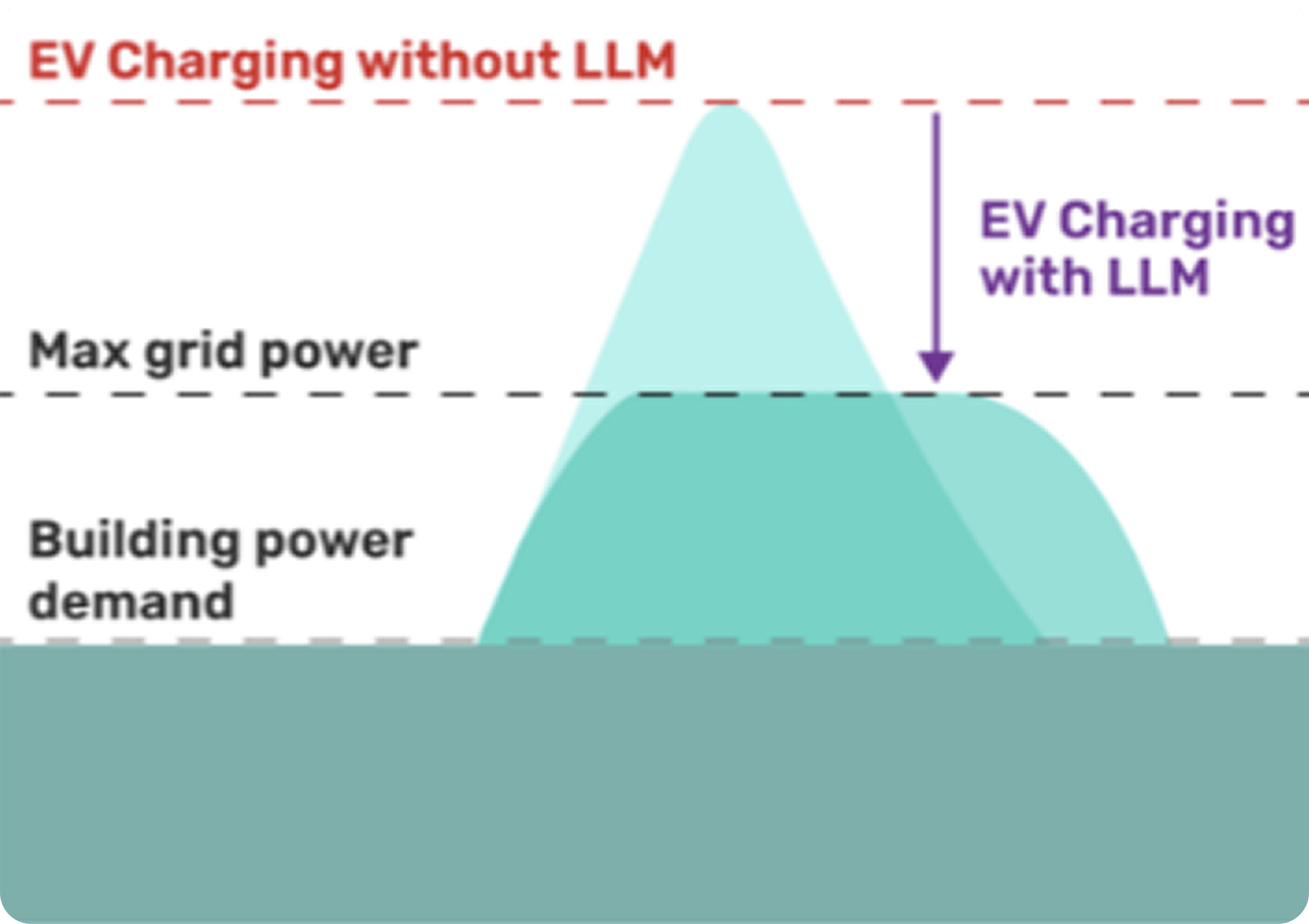

Built in load management
Loop’s UL 60730 certified Local Load Management (LLM) technology allows multiple charging stations to safely share the available eletrical capacity at a site.
This technology is built into the charging station and works with or without a network connection

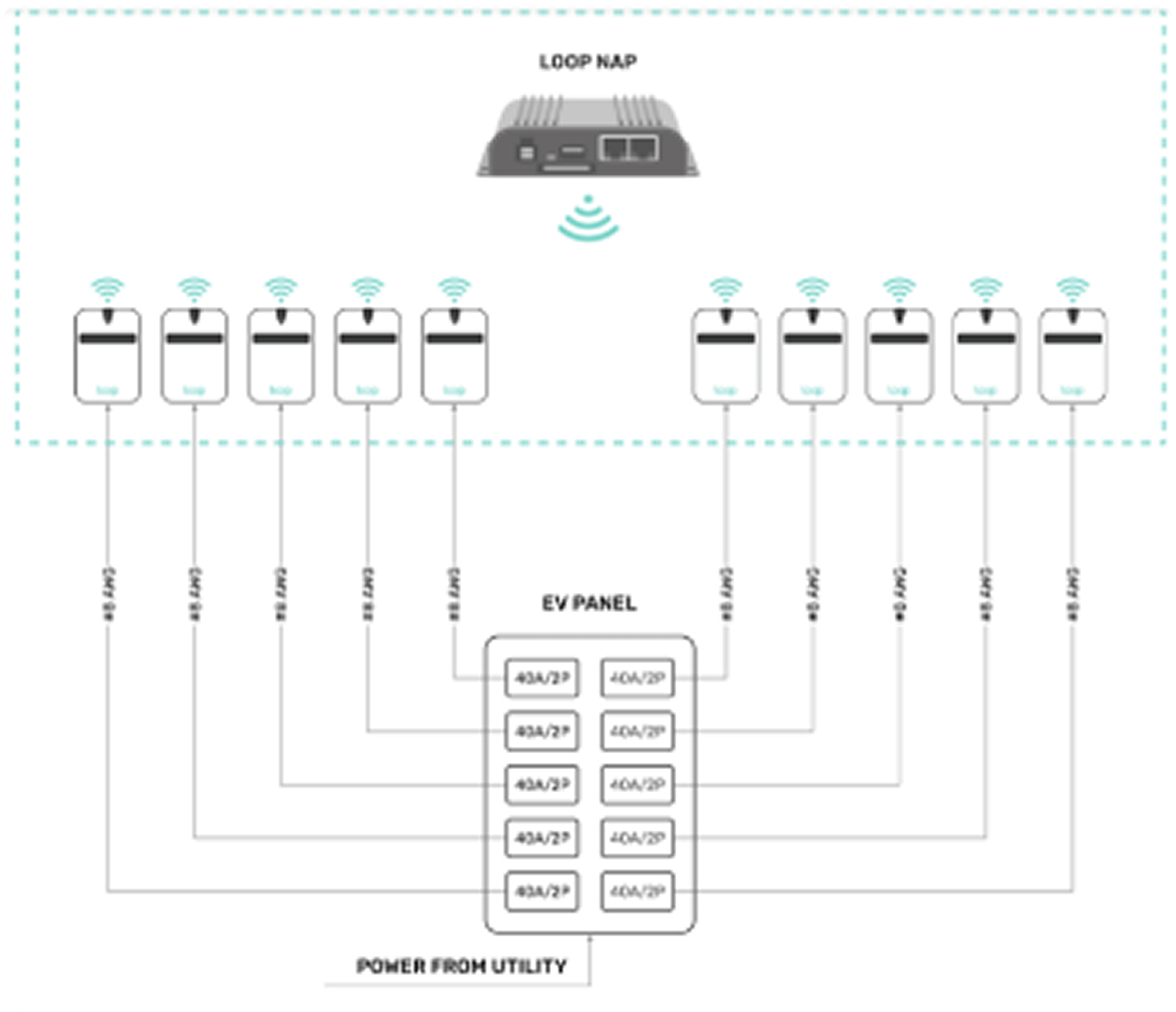

Each charger is installed on its own dedicated full-size circuit breaker, ensuring maximum power output when load management isn’t required. Only when the combined demand reaches a set threshold does the system intelligently reduce individual charger output.
By installing two or more chargers on a single circuit breaker, charging power is automatically shared, either evenly or according to programmed settings, when multiple vehicles charge at once. For example, connecting two EV-Flex™ 32 Amp chargers to a dedicated 40 Amp breaker would allow each unit to draw 16 Amps when both are in use.
FEATURES
Designed for Drivers
